Interact Corrugate

A panel based system that allows for a true linear configuration



To enable the production of a true linear pattern, the corrugate textures are created on panels in a mechanised way in our workshop. Available in a maximum panel size of 2.4 x 0.5m, in two profiles, these are expressed in a panel form and can be arranged as tiles on a solid substrate to create repeating pattern.

Panels can be cut to a desired size and arranged in a vertical or horizontal orientation. Consideration must be given to joins as these will be visible and can be highlighted as a feature with detailing or left as is as per stone installations.



A solid substrate is required to glue and pin the panels to, with an allowance for material thickness of the panel.

Able to used as a feature on fireplaces, walls and joinery, the interact corrugate panels can add texture and dimension.

Panels are made to order and can be manufactured in a full range of Ambitec colours.





Small Corrugate profile


Large Corrugate in a tiled application
Large corrugate profile


Corrugate Profiles

  • Small Corrugate

  • Large Corrugate

Possibilities with Interact panels

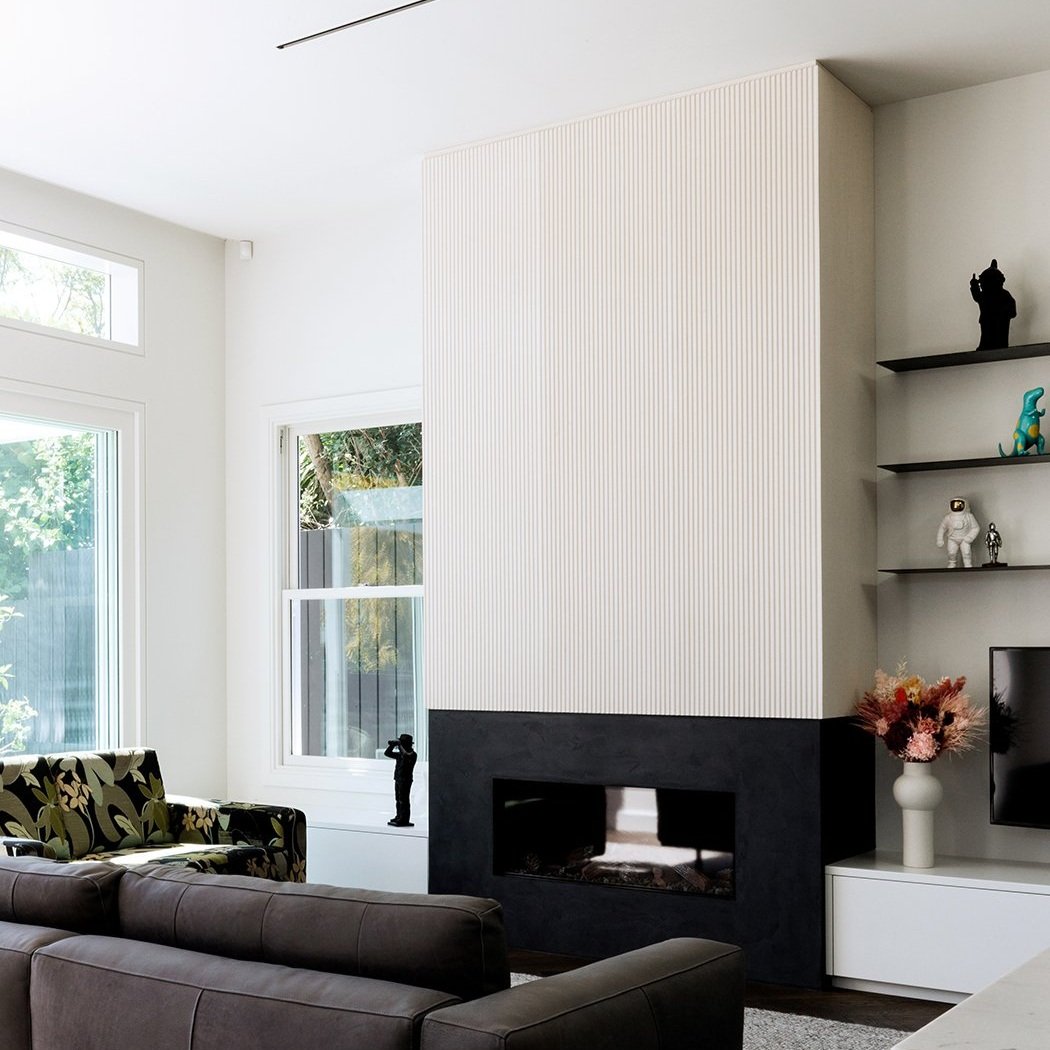

Fine Corrugate around fireplace
Large Corrugate as feature wall
Large Corrugate on cabinetry
Large Corrugate as feature wall
Large Corrugate on fireplace
Fine Corrugate on curved wall
Fine Corrugate around fireplace
Fine Corrugate on curved wall
Large Corrugate on fireplace
Large Corrugate on cabinetry
Fine Corrugate around fireplace
Large Corrugate as feature wall

SPECIFICATIONS

Application: Walls | fireplaces | Cabinetry

Available Finishes: Suave | SuaveStone

Thickness: 6-10 mm

Texture: Fine corrugate | Large Corrugate

Polish: Matte

Colour: Select colours from our Colour library

Suitable substrates: Plywood | MDF
